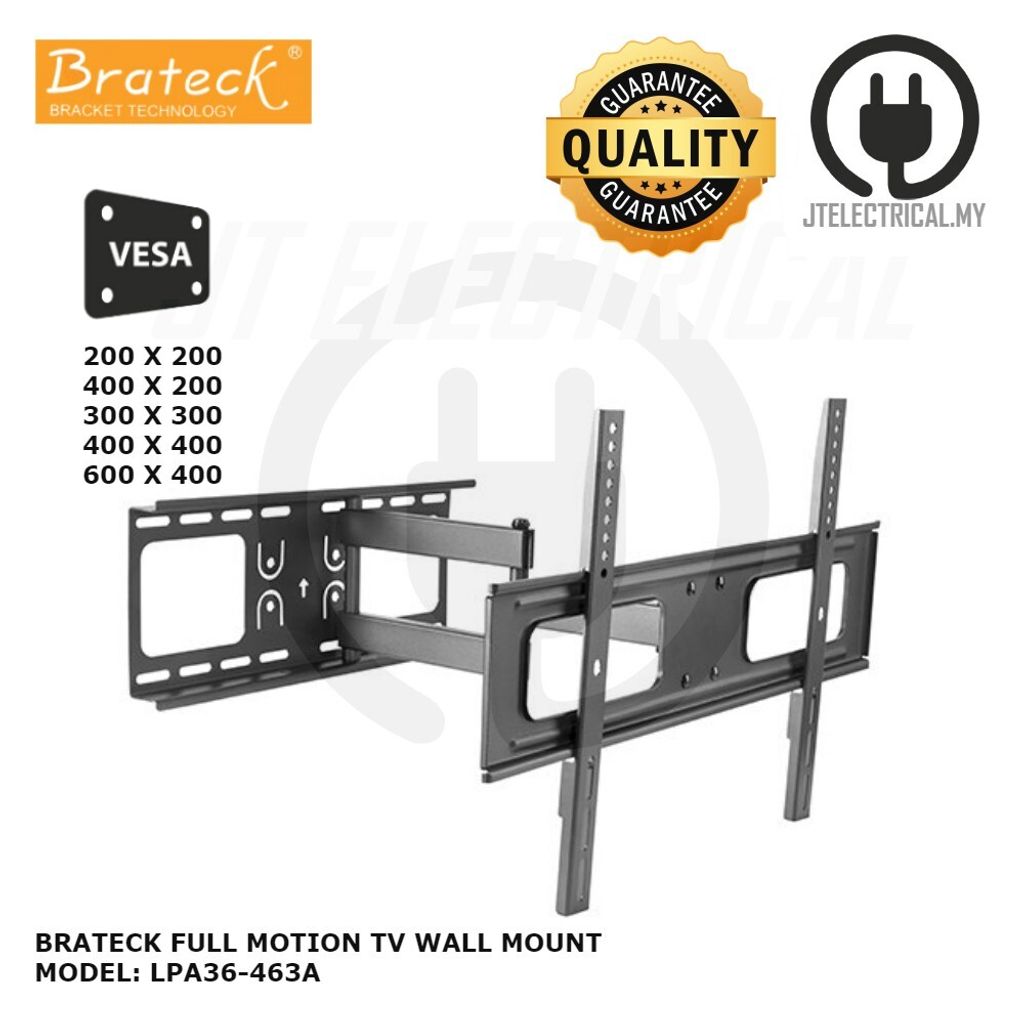

Brateck LPA36-463A 37"-70" Wall Full Motion LED LCD TV Bracket

The LPA36-463A is a full-motion wall mount for curved & flat panel TVs up to 70", 50kgs/110lbs. This mount extends out 475mm from wall and allows TVs to turn 90 left or right. Full motion allows maximum flexibility — tilts and swivel your TV for easy viewing from any seat in a room. Post-installation level adjustment allows the TV to “roll” up to 3 clockwise and counterclockwise to ensure it is perfectly level. Integrated cable management system keeps cables organized and protected. Wide wall plate fits for 406/450mm stud installation.

FEATURES
Free-Tilting Design: for multiple monitor viewing angles
Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
Built-In Level Adjustment: ensures perfect positioning

SPECIFICATION
Product Category: Full-motion TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=2.5mm cold-rolled sheet,Bracket Arm THK=2mm cold-rolled sheet (VESA Panel THK=0.079" cold-rolled sheet,Wall Plate THK=0.098" cold-rolled sheet,Bracket Arm THK=0.079" cold-rolled sheet)
Pipe Size: 40x20x1.5mm (1.6"x0.79"x0.059")
Surface Finish: Powder Coating
Color: Fine Texture Black

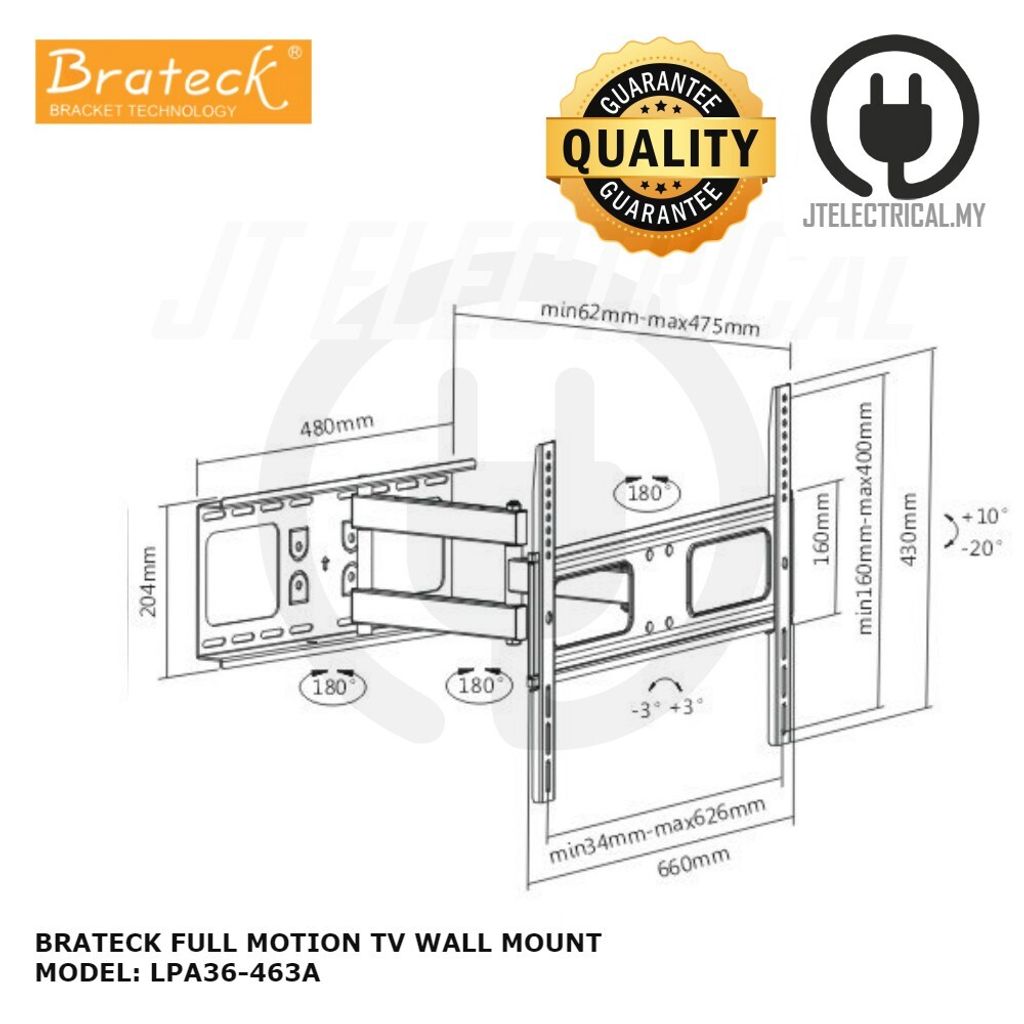

Dimensions: 475x660x430mm (18.7"x26"x16.9")
Fit Screen Size: 37"-70"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA & Universal
VESA Compatible: 200x200,300x300,400x200,400x400,600x400
Max. VESA: 600x400
Weight Capacity: 50kg (110lbs)
Strength Tested: 3 Times Approved
Profile: 62~475mm (2.4"~18.7")
Tilt Range: +10°~-20°
Swivel Range: +90°~ -90°
Screen Level: +3°~-3°
Screen Freely Tilting: Yes
